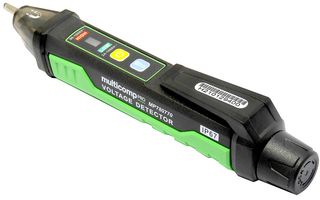

MP780770

MP780770 from Multicomp Pro is a professional grade magnetic field and voltage detector, designed with IP67 dust & water resistance and drop proof up to 2 metres. This durable device is suitable for use in harsh environments and is able to detect magnetic fields (magnetic solenoid detection). Applications include (low voltage mode - <lt/>90V) audio systems, arc welding machines, underground mining lighting, cables with a thick insulation layer and other weaker electromagnetic AC signals, (high voltage mode – 90-1000V) urban electric supply and three-phase systems, such as power distribution units, electrical panels and electrical appliances.

• AC voltage (low): 24V~1000V
• AC voltage (high): 90V~1000V
• Frequency range: 50/60Hz
• Magnetic Solenoid Detection
• Built-in flashlight
• Audible (buzzer) and visual (LED) indication
• Auto power-off
• Low voltage indication
• Double injection moulding
• 2m drop test
• 1.5V battery (R03) x 2
• Device dimensions: 160.5mm x 21.5mm x 25mm
• Device weight: 72g
• IP Rating: IP67
• Safety Class: CAT IV 1000V

Tillämpningar

Test & Measurement, Audio, Commercial, Control Panels, Electrical, Low Voltage, Industrial & Manufacturing

Innehåll

x1 Non-Contact AC Voltage Detector; x2 1.5V AAA Battery (R03)

Kommentarer

3 Years Manufacturer Warranty. Buzzer and sensing LED frequencies increase when The detector gets closer to the test object
