8.12.00 J-LINK PRO

The 8.12.00 is a J-Link PRO JTAG emulator designed for ARM cores. The J-Link PRO is a refined version of the regular J-Link. It has an Ethernet interface in addition to the USB interface, as well as two additional LEDs which are used as hardware status indicators. It connects via USB or Ethernet to a PC running Microsoft Windows 2000, Windows XP, Windows 2003, Windows Vista or Window 7. The J-Link PRO is fully compatible with J-Link and can be used out-of-the-box. J-Link PRO uses DHCP per default. The built in webserver makes manual configuration easy and convenient. Ethernet allows using the emulator far away from the PC in a development or production environment; download and debugging speed is higher and Ethernet provides electrical isolation from the PC.

• J-Link PRO via TCP/IP provides higher download speed
• J-Link PRO provides more memory for future firmware extensions
• Free software updates, 2 years of support
• Additional LEDs for power and RESET indication
• Comes with web interface for easy TCP/IP configuration (built in webserver)
• Serial wire debug (SWD) supported
• Serial wire viewer (SWV) supported
• Automatic core recognition
• Maximum JTAG speed 60MHz
• All JTAG signals can be monitored, target voltage can be measured

Tillämpningar

Embedded Design & Development

Innehåll

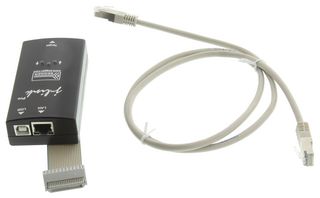

J-Link PRO, Ribbon cable, Ethernet cable (1m), USB cable.
