PSG3455

Easily extend a high definition HDMI source over a single Cat5e/6 network cable. The PSG3455 utilises a versatile matrix design that supports 1-to-1 and 1-to-many configurations using a standard IGMP switch.

• Matrix design supports 1-to-1 and 1-to-many configuration
• Supports resolutions up to 1080p Full HD @60Hz
• Maximum cable run 120m (Cat6) or 100m (Cat5e)
• HDbitT technology for stable performance
• Smart control app for PC and mobile devices
• IR Passback support (20-60kHz frequency) to control source devices
• HDMI 1.3, HDCP 1.4 compliant
• Channel ID display and power/activity status LED indicators
• Easy access reset button (TX & RX)

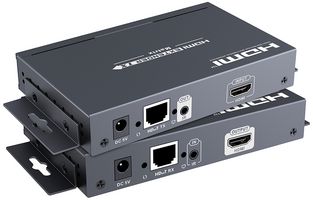

• Transmitter connections: HDMI in, RJ45 out, IR out
• Receiver connections: RJ45 in, HDMI out, IR in
• Dimensions (HxWxD): 24x133x84mm (each)
• Wireless remote requires 1x CR2025 battery
• UK mains plug (type G), as used in the UK, IRL, Cyprus, Saudi Arabia, Malta and many others.

Innehåll

Transmitter, receiver, remote, 2x AC adaptor, 2x IR cables, mounting brackets and user guide
