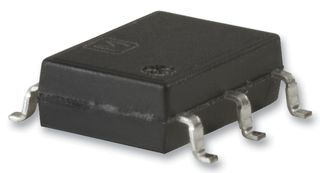

AQV212S

The AQV212S is a Solid State Relay with SPST-NO contact and surface-mount terminals. This AQV-series PhotoMOS GU 1-form-A relay feature extremely low closed-circuit offset voltage to enable control of low-level analogue signals without distortion. Eliminates the need for a counter electromotive force protection diode in the drive circuits on the input side. Controls various types of loads such as relays, motors, lamps and solenoids.

• Controls low-level analogue signals
• Stable on resistance
• Low-level off state leakage current
• 550mW Power dissipation
• 2ms Turn-on and 0.2ms turn-off maximum time
• -40 to 85°C Operating temperature range

Tillämpningar

Communications & Networking, Computers & Computer Peripherals, Test & Measurement, Motor Drive & Control

Varningar

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
