ENW89846AZKF

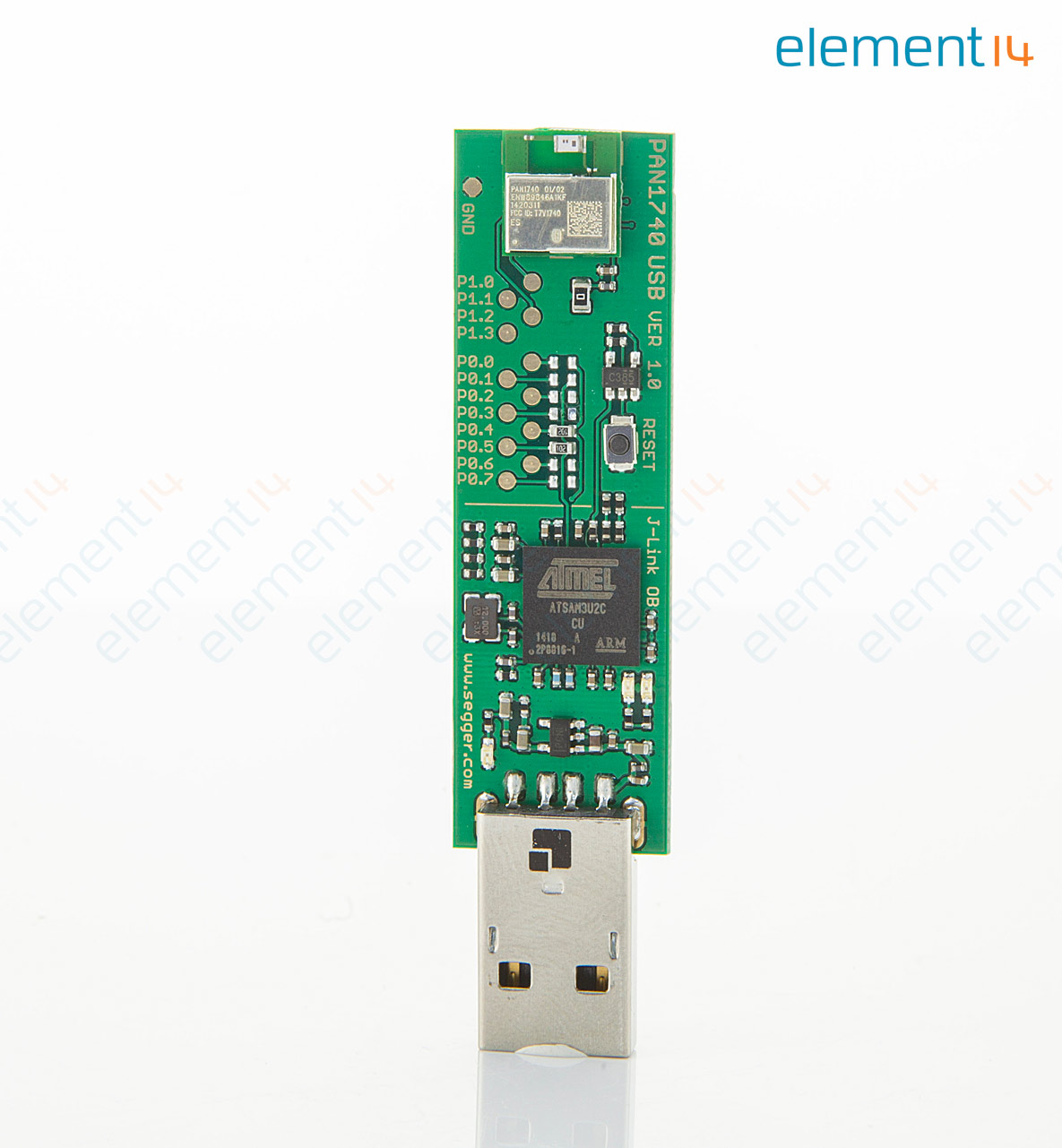

Evaluation Kit, Bluetooth, USB Stick, Smartsnippets, ATSAM3U2C

PANASONIC ENW89846AZKF
PANASONIC ENW89846AZKF
360°
×
×

Bilden är enbart avsedd som illustration. Se produktbeskrivningen.

Tillverkarens art.nr.:
ENW89846AZKF
Orderkod:
2449322
Produktsortiment
PAN1740
Även kallad:
PAN1740-USB Dongle
Tekniskt datablad:
ENW89846AZKF   Datablad
Se alla tekniska dokument

Välj produktsortiment (PAN1740)

Visa alla produkter i detta sortiment

Produktöversikt

PAN1740 is the next generation Bluetooth Low Energy Module from Panasonic with reduced form factor, significantly lower power consumption and embedded Software Stack. The Single-mode Bluetooth Smart System-on-Chip module is optimized for low power, small size and low system cost products. It reduces external component count, development effort and time to market. The Module is manufactured in a very small 9.0* 9.5* 1.8 mm3 SMD package with shielded case and chip antenna. The power consumption of only 4.9mA in Tx and Rx mode makes the use of coin cell batteries possible or reduces the needed battery capac - ity and cost of existing solution by at least 50%. It is qualified according to Bluetooth 4.1 standard. as well as FCC, IC and CE. The PAN1740 comes with a complete software development platform, which includes a qualified Bluetooth Smart single-mode stack on chip. Multiple Bluetooth Smart profiles for consumer wellness, sport, fitness, security and prox - imity applications are supplied as standard, while additional customer profiles can be developed and added as needed. PAN1740 ETU USB Evaluation Stick. The stick has a USB to UART converter and allows hardware access to the module pins. It is designed to be used with SPP-Toolbox. The development is based on the SDK from Dialog Semiconductors. For further information please register on development platform: https://support.dialog-semiconductor.com/user/register/
  • ARM CORTEX M0 CPU
  • Includes 16MHz and 32.768kHz crystal
  • 42k SRAM and 32k OTP Memory for Profiles and Apps (delivered blank)
  • Small 9.0 x 9.5 x 1.8 mm SMD package with antenna
  • Power consumption 4.9mA Rx and Tx
  • Temperature Range from -40°C to +85°C
  • Link budget 93dBm (Rx Sensitivity -93, Tx 0 dBm)
  • GPIO, UART, SPI, I²C, 3-axis QD, ADC

Tillämpningar

Wireless

Varningar

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Produktinformation

Vill du se liknande produkter? Välj önskade tillval nedan och tryck på knappen ×


:
Panasonic

:
Wireless Connectivity

:
PAN1740

:
Bluetooth Low Energy

:
USB Stick

:
PAN1740

Hitta liknande produkter Välj och ändra sorteringsfunktionerna ovan för att hitta liknande produkter.

Tekniska dokument (4)

CAD Nedladdningar

×

Villkor

CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.

Godkänn Avbryt

Även kallad

PAN1740-USB Dongle

4 I lager Behöver du fler?

Mer i lager i veckan som börjar med 2023-07-31
Standardleveranstiden för denna produkt är 18 veckor.

Beställ innan 18:00

Levereras nästa vardag

Leveranstiderna är på grund av marknadsföhållandena enbart vägledande och kan komma att ändras med kort varsel

497,16 kr

Ingen prisinformation är tillgänglig. Vänligen kontakta kundtjänst

Pris för:
Styck
Flera: 1 Minimum: 1
Antal Pris Ditt pris


1+ 497,16 kr
