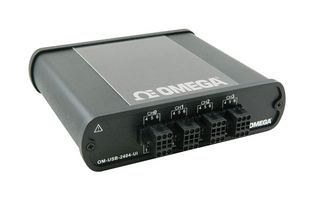

OM-USB-2404-UI

4ch universal analogue input USB data acquisition module. It can be used to measure variety of sensor types such as RTDs, thermocouples, load cells and other powered sensors. The four channels are individually configurable so a different measurement type can be performed on each channel. Six-position input screw terminal allows different measurement types to be performed on each channel. It can perform the following measurements such as voltage, current, thermocouple, RTD (3- and 4-wire), Resistance (2- and 4-wire) and bridge based sensors (quarter, half and full-bridge).

• 24bit resolution
• Simultaneous sampling at up to 100S/s per channel
• Built-in thermistor for cold-junction compensation (CJC)
• Supported under popular Microsoft Windows® operating systems
• Fully compatible with both USB 1.1 and USB 2.0 ports

Innehåll

USB data acquisition module, 2m (6') USB cable and TracerDAQ software, User manual on CD.
