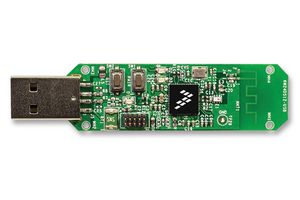

USB-KW24D512

The USB-KW24D512 board is an IEEE 802.15.4 packet sniffer in a convenient USB dongle form factor. Packet sniffers are essential for wireless network development allowing over the air traffic monitoring. As a standalone board, it can also be utilized in a lab as a development platform and programmed as a network node. The USB-KW24D512 includes MKW24D512 device with 32MHz reference crystal oscillator, RF circuitry including antenna and supporting circuitry in a USB stick hardware format. This is used in a simple standalone application or in combination with other boards. NXP provides a complete software development environment called the NXP BeeKit wireless connectivity toolkit. A wide range of software functionality is available to complement the USB-KW24D512 platform and these are provided as codebases with in BeeKit.

• 50MHz ARM Cortex-M4 based core
• Typical current consumption of 250µA/MHz in run mode and 1.7µA in RTC standby mode
• -102dBm RX sensitivity and +8dBm TX output power
• Peak typical current consumption of 17mA at TX and 19mA at RX
• Dual Personal Area Network (PAN) support in hardware
• Active and passive tamper detection with RTC timestamp
• DES, 3DES, AES 128-256, SHA-1, SHA-256, MD5, RNG crypto engine
• USB 2.0 FS/LS H/D/OTG
• Supply voltage is 5VDC

Tillämpningar

Communications & Networking, Wireless

Innehåll

USB-KW24D512 packet sniffer/dongle, Quick start guide, USB cable.
