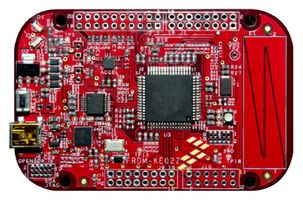

FRDM-KE02Z40M

The FRDM-KE02Z40M is a freedom development platform featuring the Kinetis E series MKE02Z64VQH4 industry’s first 5V microcontroller built on the ARM Cortex M0+ core. This microcontroller includes a powerful array of analog, communication, timing and control peripherals with varying flash memory size and pin count. Additionally, it is a highly robust, cost effective and energy efficient microcontroller that provide the appropriate entry level solution. Ultimately, this product is the next generation microcontroller solution, offering enhanced ESD/EMC performance for cost sensitive, high reliability device applications used in high electrical noise environments. The FRDM-KE02Z40M features two microcontrollers, the target microcontroller and a serial and debug adapter (OpenSDA) microcontroller. The target microcontroller is a Kinetis E series KE02 family device and OpenSDA microcontroller is a Kinetis K series K20 family device K20DX128VFM5.

• Capacitive touch slider, MMA8451Q accelerometer and tricolor LED
• Flexible power supply options through USB and external source
• Easy access to microcontroller I/O
• IrDA transmitter and receiver
• Thermistor sensor to measuring temperature
• Form factor compatible with Arduino R3 pin layout
• OpenSDA debug interface
• Mass storage device flash programming interface
• P&E debug interface provides run control debugging and compatibility with IDE tools
• New ARM standard for embedded debug interface

Tillämpningar

Consumer Electronics, Industrial, Power Management, Metering, Security

Innehåll

FRDM-KE02Z40M hardware, Quick reference card.

Kommentarer

The OpenSDA circuit is operational only when a USB cable is connected and is supplying power to OpenSDA USB connector.
