MP008593

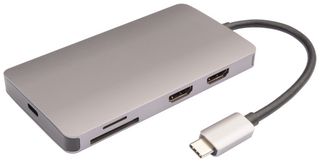

This is a Type-C 8-in-1 hub with 2 HDMI, 3 USB-A, SD/TF card slots and Type-C female port, providing an ideal solution for extending the port of Type-C or Thunderbolt 3 host (PC/Laptop/Mobile phone,etc.), especially for those host with a single Type-C port. This hub adopts the latest DP1.4 Alt mode supported IC, enabling to output HDMI video with max 4k/60Hz or dual 4k/30Hz and at the meanwhile transfer USB 3.1 data with max 5Gbps. 3 USB-A ports allow you to connect 3 USB devices simultaneously. SD/Micro SD allow to insert 2 card slots simultaneously for data transmission or for reading/writing information on the host.

• USB-A 3.0x3
• 1 USB-A port supports max 7.5W(5V/1.5A) downstream charging, 3 USB-A share max 12W (5V/2.4A) downstream charging.
• Max 5Gbps bandwidth per USB-A port
• SD/Micro SD
• Support Secure Digital v3.0 UHS-I (Ultra High Speed): SDR12 (12.5Mbyte/s)/SDR25(25Mbyte/s)/SDR50(50Mbyte/s)/DDR50(50Mbyte/s)/SDR104(104Mbyte/s)
• Allow 2 card slots to work simultaneously
• Type-C Femalex1 (for PD Charging)
• Support PD Charging 100W (20V/5A)
• Support Fast Role Swap of PD 3.0, the connected device will not get disconnected while plugging in and out PD Adapter
• 15W is dedicated to the functioning of this product, the rest power (max 85W) will be passed to charge for the host

Tillämpningar

Computer Peripherals, Data / Computing, Hobby & Education, Multimedia, Office, Portable Devices

Innehåll

x1 Main unit; x1 User Manual

Kommentarer

When connecting a DP1.4 Alt mode supported host, the max resolution of HDMI is 4k/60Hz (dual 4K/30Hz); When connecting a DP1.2 Alt mode supported host, the max resolution of HDMI is 4k/30Hz (dual 1080P/60Hz) due to bandwidth limitation.
