72-2925

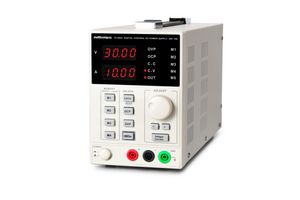

The 72-2925 from Tenma is a single channel digital control DC power supply. This power supply has a low noise and ripple. It also has keyboard lock function to prevent operator errors. The 72-2925 is an easy alternative to the traditional digital display power supplies. This power supply has load regulation ≤0.01% +2mV (voltage), ≤0.1% +5mA (current) and line regulation of ≤0.01% +3mV (voltage), ≤0.1% +3mA (current). The setting accuracy (25°C ±5°C) is ≤0.5% +20mV (voltage), ≤0.5% +10mA (current).

• Complete digital control / programmable
• 10 mV / 1 mA resolution
• Low noise and ripple
• CV / CC constant voltage and constant current modes
• Settable OCP and OVP, constant protection mode
• 5 sets of parameters can be stored and recalled
• Output switch control, power-off memory function
• Dimension is 110mm(W) x 156mm(H) x 310mm (D) and weight is 7Kg
• Ambient operating temperature from 0°C to 40°C
• 12 month limited warranty *view Terms & Conditions for details

Tillämpningar

Test & Measurement, Laboratory, Hobby & Education

Innehåll

72-2925 power supply, Power cord (1.2m), user manual

Kommentarer

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
