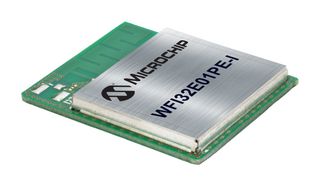

WFI32E01PE-I

WFI32E01PE is a standalone and fully certified Wi-Fi module supporting 2.4GHz 802.11 b/g/n radio modes. Specially designed for industrial IoT applications, WFI32E01PE contains the PIC32MZW1 series Wi-Fi SoC, which is a 200MHz high performance MCU with industrial leading Wi-Fi connectivity and rich peripheral options. PIC32MZW1 has 1MB embedded flash and 256KB SRAM, empowering embedded designers to rapidly build complex IoT software covering WLAN, TCP/IP stack, RTOS, Cloud connectivity, and application. Various types of peripherals, such as Ethernet, USB, ADC, CVD touch buttons, and CAN, make PIC32MZW1 a perfect system core to realize the most application features.

• 200MHz, MIPS32® M-Class Microprocessor Core
• 1MB embedded flash, 256KB SRAM (program and data), 64KB data buffer
• High performance peripheral set including full-speed USB, CAN, CAN-FD, 10/100 MAC, 12bit dual ADCs
• Single-band 2.4GHz b/g/n
• Wi-Fi security protocols supported: WPA/WPA2/WPA3 Personal, TLS, SSL
• CVD touch input
• 24.5mm x 20.5mm x 2.5mm size
• Voltage range from 3.0V to 3.6V

Varningar

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
