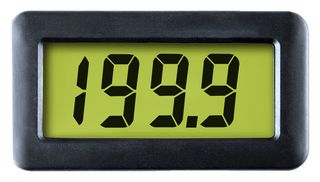

DPM 742-BL

The DPM 742-BL is a 4 to 20mA Loop Powered LCD Meter with LED backlighting. It features a 3-1/2-digit LCD with 12.7mm digit height and LED backlighting. Calibration is by two multi-turn potentiometers which allow sensitive adjustment of the instrument over a very wide range. Decimal points are jumper link selectable. LED backlighting ensures excellent readability under low light conditions. The module has a low drift bandgap reference circuit ensures accurate readings over a wide temperature range. It will suits high and low volume applications. This module is supplied with a plastic mounting bezel. A waterproof seal to IP67/NEMA-4X is achievable, using the optional BEZ 700-IP metal bezel.

• Gives an accurate, zero adjusted indication
• Connection is via screw terminals
• Low voltage drop
• Bandgap reference
• Wide adjustment range
• Auto-polarity on Display

Tillämpningar

Industrial, Clock & Timing, Test & Measurement, Automation & Process Control
