0046020

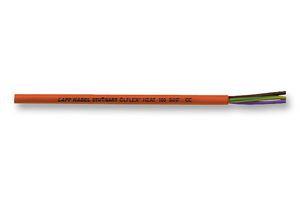

The 0046020 is a 3-core unshielded temperature-resistant Silicone Cable with fine wire strand of tinned copper according to IEC 60228 resp. VDE 0295, class 5 standards, red silicone rubber jacket and 14AWG wire. The ÖLFLEX® HEAT 180 SiHF silicone cable recommended for use in the case of high ambient temperatures under sufficient ventilation and small mechanical stress. In the case of room temperature. The ÖLFLEX® HEAT 180 SiHF silicone cable is largely resistant against oil, alcohol, acids, caustic solutions, salt solution and salt water. Possesses insulating properties after combustion due to remaining SiO₂ ash on the conductor. Ideal for areas with high ambient temperatures where insulating and sheath materials of conventional cables will embrittle after a short while.

• CPR: Not Yet Qualified
• Extended temperature range
• Flexibility simplifies installation where space is limited
• Classic for multi-functional use
• Fine-wire, tinned-copper conductor
• Silicone-based core insulation
• Cores twisted in layers
• Silicone-based outer sheath
• Halogen-free and flame-retardant (IEC 60332-1-2)
• Cold-resistant
• Resistant to a multitude of oils, alcohols, vegetable and animal fats and chemical substances

Tillämpningar

Industrial, Motor Drive & Control, Medical, HVAC, Lighting
