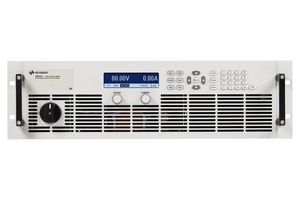

N8925A

N8925A is a N8900 series affordable, autoranging, single-output programmable DC power supply for ATE applications. The N8900 series power supplies’ autoranging output characteristic enables unprecedented flexibility by offering a wide range of voltage and current combinations at full power. Power supplies with rectangular or traditional, output characteristics provide full power at only one voltage and current combination. N8900 series provides stable output power, built-in voltage and current measurements and autoranging output voltage. This supply offers many system-ready features like multiple standard I/O interfaces to simplify and accelerate test-system development and compact 3U design to save rack space.

• 80V maximum voltage, 340A maximum current, 10000W maximum power, 208VAC input voltage
• Easy front-panel operation, parallel operation for more power
• Protection from overvoltage, overcurrent and overtemperature
• Comes standard with GPIB, Ethernet/LAN, USB 2.0, and analogue interfaces
• Operating temperature range from 0°C to 45°C
• Built-in web server provides remote access and control of instrument via a standard browser
• Easy system integration and configuration
• Autoranging output – does the job of multiple power supplies
