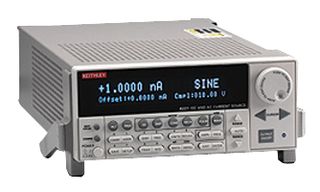

6221

The 6221 AC and DC Current Source combine ease of use with exceptionally low current noise. Low current sourcing is critical to applications in test environments ranging from R&D to production, especially in the semiconductor, nanotechnology, and superconductor industries. High DC power supply sourcing accuracy and built-in control functions make the 6221 ideal for applications like Hall measurements, resistance measurements using delta mode, pulsed measurements, and differential conductance measurements.

• Source and sink (programmable load) 100fA to 100mA
• 1014Ω output impedance ensures stable current sourcing into variable loads
• 65000-point source memory allows comprehensive test current sweeps directly from the current source
• Built-in RS-232, GPIB, Trigger Link, and digital I/O interfaces
• Reconfigurable triax output simplifies matching the application's guarding requirements
• Model 220 emulation mode eliminates need to reprogram existing applications
• Source AC currents from 2pA to 100mA for AC characterization of components and materials
• The 6221's 10MHz output update rate generates smooth sine waves up to 100kHz
• Built-in standard and arbitrary waveform generators with 1mHz to 100kHz frequency range
• Applications include use as a complex programmable load or sensor signal and for noise emulation
• Programmable pulse widths limiting power dissipation in delicate components
• Supports pulsed I-V measurements down to 50μs when used with Model 2182A Nanovoltmeter
• Built-in Ethernet interface for easy remote control without a GPIB controller card

Tillämpningar

Sensing & Instrumentation, Signal Processing, Test & Measurement

Innehåll

Model 237-ALG-2 Low-Noise Triax Input Cable Terminated w/ a 3-Slot Male Triax Connector on One End and 3 Crocodile Clips on the Other, 2m (6.6ft), Model 8501-2 Trigger Link Cable, DIN-to-DIN, 2m (6.6ft), & Model CA-180-3A TSP-Link Cable.

Kommentarer

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
