7324.6007.0

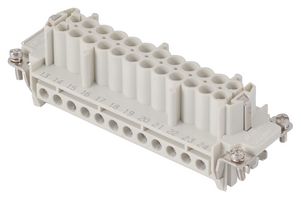

Heavy Duty Connector, 24+PE Signal, Wire Protection, 93601, Insert, 24 Contacts, 24B, Receptacle
Behöver du fler?
| Antal | |
|---|---|
| 1+ | 187,020 kr |
| 10+ | 183,240 kr |
| 25+ | 179,570 kr |
| 100+ | 175,800 kr |
| 250+ | 172,020 kr |
| 500+ | 168,350 kr |
Produktinformation
Produktöversikt
The Gwconnect series Heavy Duty Connector (HDC) provide extensive industrial inserts, enclosures and complementary products including, alternate or direct-current connectors for heavy-duty industrial applications; multi-pole connectors for use in electronic machinery, robots, electric panels, control equipment, power and control- or signal-circuit connectivity; enclosures for standard, harsh and EMC environments; plastic and metal cable glands. The principal HDC parts are comprised of die-cast aluminium alloy with either a polyester powder (nickel-plated for EMC versions) finish or a self-extinguishing thermoplastic. Coupling stability and accidental opening protection is achieved by two locking systems. Sealing of dust, water and aggressive agents is assured with internal protective gaskets.
Tillämpningar
Commercial Vehicle, Industrial
Tekniska specifikationer
93601
Insert
24B
Screw Socket
14AWG
Copper Alloy
No SVHC (15-Jan-2019)
24Contacts
24 Contacts
Receptacle
16A
20AWG
Silver Plated Contacts
Teknisk dokumentation (1)
Lagstiftning och miljö
Det land där den sista betydelsefulla tillverkningsprocessen utfördesUrsprungsland:China
Det land där den sista betydelsefulla tillverkningsprocessen utfördes
RoHS
RoHS
Certifikat för produktefterlevnad
