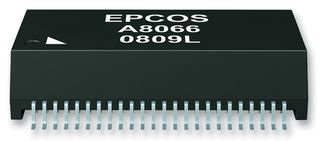

B78476A8247A003
Ethernet & LAN Transformer, 10/100 Base-T, 1 Port, 1CT:1CT, 350 µH, 1.5 kV, Surface Mount
2 000 Nu kan du reservera lagervaror
| Antal | |
|---|---|
| 1+ | 31,860 kr |
| 10+ | 25,660 kr |
| 25+ | 24,470 kr |
| 100+ | 23,270 kr |
| 250+ | 20,120 kr |
| 500+ | 16,850 kr |
Produktinformation
Produktöversikt
The B78476A8247A003 is a 350µH 1-port 10/100 base-T magnetic LAN Module with ferrite toroid, case and potting construction as per UL94V-0 standards. This magnetic modules pulse transformer provide minimum 1500V dielectric isolation combined with excellent insertion and return loss as well as crosstalk and differential to common-mode rejection. EPCOS Magnetics module support not only the standard temperature range from 0 to +70°C, they are also available with an extended temperature range from -40 to +85°C for industrial applications. This Power over Ethernet technology module is optimized for use in local area networks, hubs, switches and routers but also for use in PCs and modems and is approver by IPC/JEDEC, J-STD-020C and IEEE 802.3 standards.
- MSL-2 Moisture sensitivity level
Tillämpningar
Communications & Networking
Tekniska specifikationer
10/100 Base-T
1 Port
350µH
Surface Mount
85°C
No SVHC (21-Jan-2025)
10/100 Base-T
1CT:1CT
1.5kV
-40°C
B78476 Series
Teknisk dokumentation (2)
Lagstiftning och miljö
Det land där den sista betydelsefulla tillverkningsprocessen utfördesUrsprungsland:China
Det land där den sista betydelsefulla tillverkningsprocessen utfördes
RoHS
RoHS
Certifikat för produktefterlevnad
