SEN0230

SEN0230 is an incremental photoelectric rotary encoder. This is an industrial incremental photoelectric rotary encoder with aluminium material, metal shell and stainless steel shaft. It generates AB two-phase orthogonal pulse signal though the rotation of the grating disk and optocoupler. 400 pulses/round for each phase, and 1600 pulses/round for dual-phase 4 times output. This rotary encoder supports max 5000 r/min speed. And it can be used for speed, angle, angular velocity and other data measurement.

• Supply voltage range from 4.8V to 24V
• Encoder body size is Φ39× 36.5mm
• Output shaft diameter of Φ6 × 13mm
• Outside shaft platform of Φ20 × 4.85mm
• M3 fixing holes screws
• 234g weight

Innehåll

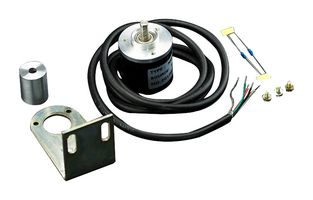

Encoder x 1, Encoder mounting bracket x 1, 6mm coupling x 1, Screw accessories x 1, 10K resistance x 2.
