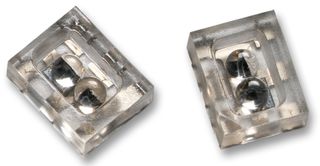

AEDR-8300-1Q2

The AEDR-8300-1Q2 is a Reflective Optical Encoder for high volume applications. The AEDR-8300 series is the smallest optical encoder technology for motion control purposes. The encoder houses an LED light source and a photo-detecting circuitry. It offers two-channel quadrature digital outputs. Being TTL compatible, the outputs of the AEDR-8300 series can be interfaced directly with most of the signal processing circuitries. Hence the encoder provides great design-in flexibility and easy integration into existing systems.

• Reflective technology
• Two channel quadrature outputs for direction sensing
• TTL compatible output
• -20 to 85°C Absolute operating temperature range

Tillämpningar

Computers & Computer Peripherals, Consumer Electronics
