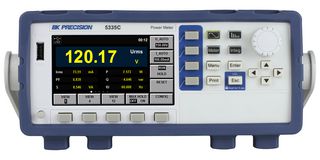

BK5335C

Compact, single-phase AC / DC power meter for measuring and analysing power consumption and power quality parameters quickly and accurately. It supports power measurements up to 600VRMS and 20ARMS with a bandwidth up to of 100KHz. Suitable for use in measure power, electrical energy bought or sold back to the power grid, inverters, harmonics of motors, un-interruptible power supplies, appliances and consumer electronics applications.

• 0.1% basic accuracy for voltage and current measurements
• 4.3inch colour LCD (TFT) display
• Simultaneously measure and display up to 12 measurement parameters
• Capture inrush current and voltage surge with the peak function
• Harmonic measurements to the 50th order
• Integration function with automatic range switching
• Ability to measure electrical energy which is produced or consumed
• Pre-compliance testing according to IEC/EN 62000-3-2 / 4-7
• Standard USB (USBTMC-Compliant), RS232 and LAN interfaces
• Line and frequency filter capability for reducing unwanted signal noise

Innehåll

Power meter, Getting started manual, Instruction manual (downloadable), AC power cord, USB type A-to-type B cable, Certificate of calibration.
