EVAL-AD7386-4FMCZ

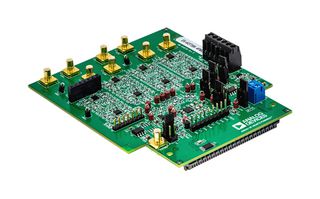

EVAL-AD7386-4FMCZ is a full featured evaluation board that evaluates all features of the AD7386-4 analogue-to-digital converters (ADCs). The evaluation board can be controlled by the EVAL-SDPCH1Z via the 160-way system demonstration platform (SDP) connector, J4. The EVAL-SDP-CH1Z board controls the evaluation board through the USB port of a PC using the analysis, control, evaluation (ACE) software. The EVAL-AD7386-4FMCZ can evaluate the AD7387-4 and the AD7388-4 by using the AD738x-4 ACE plugin. The only difference is the number of SCLKs that clock out the conversion results, which is dependent on the resolution and throughput rate for each generic. The EVAL-AD7386-4FMCZ is powered by the EVAL-SDP-CH1Z board by default. External power supplies can be applied.

• Full featured evaluation board multichannel, simultaneous sampling ADC
• On-board reference, reference buffer, and ADC driver
• On-board power supplies
• Board-compatible, high-speed system demonstration platform (SDP-H1) controller
• PC software for control and data analysis

Innehåll

EVAL-AD7386-4FMCZ evaluation board, instructions to download software.
