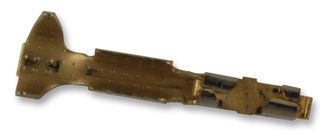

48236-000LF

The Mini PV series high-durability and high-retention Wire-to-Board Connector System connects discrete wire to printed circuit boards. High reliability dual-metal receptacle terminals plug to industry standard 0.025-inch square posts. A variety of containment, protection and guidance options are available for both sides of the connector interface. Wire side- PV® receptacle terminals can be terminated to wire and used discretely or inserted to multiple-circuit, MINI-LATCH connector housings that include optional polarizing keys. Printed circuit side- shrouded multiple-post, headers include an integral friction feature that grips the sides of the mating MINI-LATCH housings and reduces the risk of disengagement. The choice of three different spring pressures allows the user to customize insertion and withdrawal forces to individual application requirements.

• Unique dual-metal PV® receptacle contact maintains contact pressure through 1000 mating cycles
• A beryllium copper spring provides high normal force at the mating interface
• Brass contact body produces a reliable, gas-tight crimp termination
• MINI-LATCH housing firmly retains PV® wire contacts
• Available in single or double row configurations
• Keyed MINI-LATCH housings and header keyways provide polarization to prevent mis-mating
• Two wall header design provides mechanical benefits plus economy
• 1000 Cycles durability
• -40 to 105°C Operating temperature range

Tillämpningar

Consumer Electronics, Sensing & Instrumentation, Medical, Aerospace, Defence, Military, Communications & Networking, Industrial
