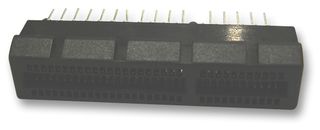

10018783-11111TLF
Card Edge Connector, PCI, Dual Side, 1.57 mm, 64 Contacts, Through Hole Mount, Straight
287 Nu kan du reservera lagervaror
| Antal | |
|---|---|
| 1+ | 16,940 kr |
| 10+ | 14,780 kr |
| 100+ | 12,950 kr |
| 500+ | 11,120 kr |
| 1000+ | 9,270 kr |
| 2500+ | 7,420 kr |
Produktinformation
Produktöversikt
The 10018783-11111TLF is a 64-way 2-row PCI Express Card Edge Female Connector, 2mm row pitch and solder termination. Copper alloy contacts with gold over nickel finish. This 1.0mm pitch, vertical card edge connector is used to implement PCI Express® architecture in desktop PCs, workstations and servers. The base connector family offers one to 16 high-speed serial PCI Express Lanes. Each serial lane supports 2.5Gbps (per direction) in a 100Ω Gen1 system or 5.0Gbps in a Gen2 system with an 85Ω differential environment. Base connector range offers 1, 4, 8 or 16 serial PCI Express links to scale to different bandwidth requirements.
- High-temperature thermoplastic (UL94V-0) for reflow or thermoplastic (UL94V-0) for wave soldering
Tillämpningar
Computers & Computer Peripherals, Industrial
Tekniska specifikationer
Dual Side
1mm
Through Hole Mount
2Rows
Copper Alloy
Nylon (Polyamide) Body
No SVHC (21-Jan-2025)
1.57mm
64 Contacts
Straight
Solder
15µ" Gold Plated Contacts
FCI 10018783
Teknisk dokumentation (4)
Alternativ till 10018783-11111TLF
1 produkt hittades
Lagstiftning och miljö
Det land där den sista betydelsefulla tillverkningsprocessen utfördesUrsprungsland:China
Det land där den sista betydelsefulla tillverkningsprocessen utfördes
RoHS
RoHS
Certifikat för produktefterlevnad
