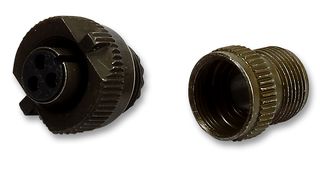

MS3106A-14S5S

The MS3106A-14S5S from Amphenol is MIL-DTL-5015 series straight plug with 5 contacts. MIL-DTL-5015 series connectors are available in a wide range of shell materials and finishes with 48 and 500 hour salt spray plating exposure. These connectors offer high density contact arrangements in a miniature circular shell and combines high coupling durability in medium to heavy weight cylindrical construction. It has a well-proven electrical capability and is designed to withstand extreme shock, exposure and vibration.

• 5 shell styles with 19 shell sizes
• Single key/keyway shell polarization
• High reliability, moisture and corrosion resistant
• 100 mating cycles, IP67 environmental protection
• Operates at extreme temperature range of -55°C to +125°C
• Minimum insulation resistance is 5000Mohm at 25°C
• Quick mating, threaded coupling
• Environmental sealing, low weight and cost effective
• Aluminium alloy body material with olive drab chromate over cadmium plating
• Brass, copper alloy solder socket contacts with silver plating

Tillämpningar

Aerospace, Defence, Military, Industrial
