215711-1

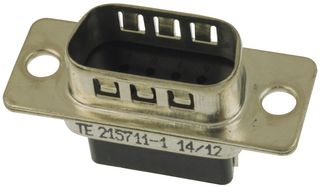

D Sub Connector Housing, 9 Ways, D Sub, DE, AMPLIMITE HDP-20, Plug, Steel Body
Behöver du fler?
| Antal | |
|---|---|
| 1+ | 45,890 kr |
| 10+ | 37,300 kr |
| 100+ | 32,840 kr |
| 250+ | 28,820 kr |
| 500+ | 27,950 kr |
| 1000+ | 23,810 kr |
Produktinformation
Produktöversikt
The AMPLIMITE HDP-20 series high-density Connector with crimp-type contacts. The connector is designed for rear insertion and extraction of size 20, precision formed contacts. This connector features steel shells and black polymer inserts with plastic contact retention tines. It comes in a variety of sizes for production needs and is adaptable to a variety of mounting and hardware requirements. Using a keystone mating face configuration, this connector incorporates multiple polarization and mating alignment features, allowing flexibility in system design. The plug connector has an integral hood which protects the inserted pin contacts. The cavity rows are number-coded for convenience. This connector accepts a contact with a wire size range of 28 to 18AWG.
Tillämpningar
Industrial, Aerospace, Defence, Military, Commercial
Tekniska specifikationer
9Ways
DE
Plug
AMP HDP-20 Series Size 20 Pin Crimp Contacts
D Sub
AMPLIMITE HDP-20
Steel Body
Teknisk dokumentation (3)
Tillhörande produkter
3 produkter hittades
Lagstiftning och miljö
Det land där den sista betydelsefulla tillverkningsprocessen utfördesUrsprungsland:Poland
Det land där den sista betydelsefulla tillverkningsprocessen utfördes
RoHS
RoHS
Certifikat för produktefterlevnad
