76-1566

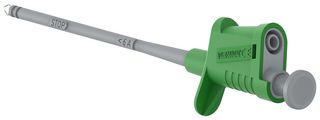

Test Probe Connector, Pincer Clip, Voltage
Image is for illustrative purposes only. Please refer to product description.
Available to Order
Notify me when back in stock
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | kr132.770 |
| 25+ | kr125.160 |
| 100+ | kr117.220 |
| 250+ | kr111.240 |
| 500+ | kr109.070 |
Price for:Each
Minimum: 1
Multiple: 1
kr132.77 (ex VAT)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerTENMA
Manufacturer Part No76-1566
Order Code2729429
Technical Datasheet
Test Probe TypePincer Clip
Test Probe FunctionsVoltage
Accuracy-
For Use WithGeneral Purpose Electric & Electronic Testing, Controlling and Measuring
Product Range-
Product Overview
The 76-1566 from Tenma is a green coloured pincer clip w/4mm female banana jack (socket). It is in according to EN / IEC 61010-031:2008. 1000V CAT II, reinforced insulation 6A (at +40°C). It is used to grasp conductive parts safely to measure voltages and also general purpose electric and electronic testing, controlling and measuring applications.
- Nickel-coated steel, steel and brass conductor material
- Operating temperature of -20°C to +80°C
- Overall length is 162mm
- Flexible length of stem is 95mm
- Overall height is 39mm
- Overall width is 15mm
- Pollution degree 1 or 2
- 12 month limited warranty *view Terms & Conditions for details
Technical Specifications
Test Probe Type
Pincer Clip
Accuracy
-
Product Range
-
Test Probe Functions
Voltage
For Use With
General Purpose Electric & Electronic Testing, Controlling and Measuring
Technical Docs (1)
Associated Products
8 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:France
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:France
Country in which last significant manufacturing process was carried out
Tariff No:90309000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.02
