43031-0004
Contact, Micro-Fit 3.0 43031, Pin, Crimp, 26 AWG, Tin Plated Contacts

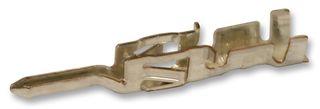

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No43031-0004
Order Code2612413
Product RangeMicro-Fit 3.0 43031
Also Known AsGTIN UPC EAN: 800754369459
Technical Datasheet
24,000 In Stock
Need more?
1-3 Working Days Delivery
Order before 17:00 standard shipping
| Quantity | Price (ex VAT) |
|---|---|
| 12000+ | kr0.571 |
| 36000+ | kr0.500 |
Price for:Each (Supplied on Full Reel)
Minimum: 12000
Multiple: 12000
kr6,852.00 (ex VAT)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMOLEX
Manufacturer Part No43031-0004
Order Code2612413
Product RangeMicro-Fit 3.0 43031
Also Known AsGTIN UPC EAN: 800754369459
Technical Datasheet
Product RangeMicro-Fit 3.0 43031
Contact GenderPin
Contact Termination TypeCrimp
Wire Size AWG Max26AWG
Contact PlatingTin Plated Contacts
For Use WithMolex Micro-Fit 3.0 43020, 43640 & Micro-Fit BMI 44300, 46625 Series Plug Housing Connectors
Wire Size AWG Min30AWG
Contact MaterialPhosphor Bronze
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 43031-0004 from Molex is a Micro-Fit 3.0 male crimp terminal made of phosphor bronze metal with tin plating. It mates with 43030 Micro-Fit 3.0 female crimp terminals and used with 43020, 43640 Micro-Fit 3.0 plug housings, 44300 Micro-Fit BMI panel mount plug housings.
- Wire size of 30AWG, 28AWG and 26AWG
- Maximum wire insulation diameter is 1.27mm
- Crimp or compression termination interface style
Applications
Alternative Energy, Automotive, Communications & Networking, Consumer Electronics, Medical
Technical Specifications
Product Range
Micro-Fit 3.0 43031
Contact Termination Type
Crimp
Contact Plating
Tin Plated Contacts
Wire Size AWG Min
30AWG
SVHC
No SVHC (21-Jan-2025)
Contact Gender
Pin
Wire Size AWG Max
26AWG
For Use With
Molex Micro-Fit 3.0 43020, 43640 & Micro-Fit BMI 44300, 46625 Series Plug Housing Connectors
Contact Material
Phosphor Bronze
Technical Docs (3)
Alternatives for 43031-0004
2 Products Found
Associated Products
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85369010
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.00006
