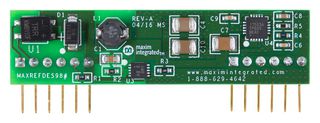

Reference Design Board, Non-isolated 5V/2.5A PoE Powered Device Power Supply


Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
Order Code:
Technical Datasheet:
MAXREFDES98#   Datasheet
See all Technical Docs

Product Overview

The MAXREFDES98# is a 5V/2.5A non-isolated POE powered device power supply. MAXREFDES98# is a unique PoE module reference design, providing 5V at 2.5A (12.5W) from a 36V to 57V input. This design can be used for evaluation, design, prototyping and production. The circuit consists of two function blocks such as the PD controller and the step-down DC-DC converter. The PD controller section employs the MAX5969A and DC to DC power supply uses the MAX17505 4.5V to 60V input, 1.7A output, high-efficiency, synchronous, step-down DC-DC converter with internal compensation. The entire design delivers a peak efficiency of 86% with an input of 48V. Typical applications include lighting, IP cameras, sensors and non-isolated Ethernet equipment.
  • Compact and flexible
  • Minimal external components
  • Robust operation in adverse environments
  • 12.5W output capacity and ±3% output accuracy


Embedded Design & Development, Power Management, Communications & Networking

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×

Analog Devices

MAX5969A, MAX17503

Power Management

Power Over Ethernet (POE), PSE Controller




Ref Design Board
