Product Information
ManufacturerHARWIN
Manufacturer Part NoM30-1060046
Order Code2289838
Product RangeM30
Technical Datasheet
Product RangeM30
Contact GenderSocket
Contact Termination TypeCrimp
Wire Size AWG Max26AWG
Contact PlatingTin Plated Contacts
For Use WithM30-110 Series SIL Female Crimp Housing Connectors
Wire Size AWG Min30AWG
Contact MaterialPhosphor Bronze
SVHCNo SVHC (21-Jan-2025)
Product Overview

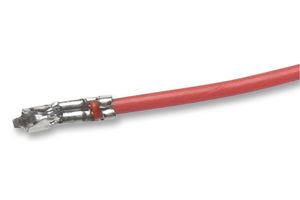

The M30-1060046 is a Crimp Socket with phosphor bronze body, gold-plating. 26 to 30AWG wire. This crimp socket is suitable for use with M22-301 or M22-302 housings.
- 1.25mm Contact pitch
- 1A Current rating
- -25 to +85°C Operating temperature
Applications
Industrial
Technical Specifications
Product Range
M30
Contact Termination Type
Crimp
Contact Plating
Tin Plated Contacts
Wire Size AWG Min
30AWG
SVHC
No SVHC (21-Jan-2025)
Contact Gender
Socket
Wire Size AWG Max
26AWG
For Use With
M30-110 Series SIL Female Crimp Housing Connectors
Contact Material
Phosphor Bronze
Technical Docs (2)
Associated Products
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:85369010
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.001
