NI DAQ is Back with 20 new products!
CompactDAQ Chassis
NI has updated their CompactDAQ chassis with better access to support resources and lower cost options that engineers use to stretch their budget.
Lower-cost, single-port Ethernet chassis with synchronization
USB-C Chassis with improved shock, vibration, and temperature specs
Learn more about CompactDAQ
±10 V input modules
The new NI 9204 is a great general purpose +/-10V input module featuring:
- 16 single-ended or 8 differential input channels
- 250 kS/s, 16-bit ADC (250k max rate 1 channel, multiplexed for all channels)
- Multiple gain settings: ±10 V, ±5 V, ±1 V, and ±0.2 V.
Snap-in Connector Modules
The new snap-in connector is available on 7 C Series model numbers and lets you connect 14-20 (0.5mm2 - 2.5 mm2) gage signal wires with a manually operated lever. No tools required!
Model Number | NI-9222 | NI-9223 | NI-9227 | NI‑9230 | NI‑9232 | NI-9238 | NI‑9269 |
| Part Number | 789124-01 | 789125-01 | 789127-01 | 789128-01 | 789129-01 | 789130-01 | 789131-01 |
| No. of Input Channels | 4 | 4 | 4 | 3 | 3 | 4 | 4 |
| Max Sampling Rate* | 500kSPS | 1MSPS | 50kSPS | 12.8kSPS | 102.4kSPS | 50kSPS | 100kSPS |
| Channel to Channel Isolation | 60V DC | 60V DC | 250Vrms | 60V DC | 60V DC | 250Vrms | 250Vrms |
| Operating Temperature Range | -40°C to +70°C | -40°C to +70°C | -40°C to +70°C | - | - | -40°C to +70°C | -40°C to +70°C |
| Resolution | 16-bit | 16-bit | 24-bit | 24-bit | 24-bit | 24-bit | 16-bit |
| Analog Output Channels | - | - | - | - | - | - | 4 |
| Supply Voltage Range | ± 10V | ± 10V | - | - | - | ± 500mV | ± 10V |
Waterproof, Rugged DAQ
NI FieldDAQ combines lab quality sensor and voltage measurements with ultra rugged specs including IP67 (waterproof), 100g shock, and -40 °C to 85 °C temperature rating.
Measurement | Voltage (+10 V) with Sensor Power | Temperature | Sound/Vibration | Strain/Bridge |
FieldDAQ model | FD-11601 | FD-11614 | FD-11634 | FD-11637 |
| Part Number |  790065-01 |  790064-01 |  790066-01 |  785641-01 |
| Channel Count | 8 | 16 | 8 | 8 |
| Supported Sensors | +10 V analog input with sensor power | Thermocouple type: J, K, T, E, N, B, R, S | IEPE accelerometers and microphones | Strain gage: quarter-, half-, and full-bridge |
| Input Connector Type | 5-pin A-coded M12 connectors 24 bits | Universal miniature thermocouple jack | 8-pin A-coded M12 connectors | 48-pin A-coded M12 connectors |
| Resolution | 24-bits | 24-bits | 24-bits | 24-bits |
| Sample Rate (Simultaneous) | Up to 102.4 kS/s/ch | Up to 85 S/s/ch | Up to 102.4 kS/s/ch | Up to 102.4 kS/s/ch |
| Sensor Power or Excitation Output | 5 V-24V, 600 mW per channel | N/A | 4 mA | 3V, 5V, or 10 V |
| Filtering | Anti-alias, Butterworth, comb filtering | 50-60 Hz rejection | Anti-alias, Butterworth, comb filtering | Anti-alias, Butterworth, comb filtering |
| Isolation | Ch-Ch isolation 60 VDC working, 1,000 VRMS withstand | |||
NI Nigel™ AI Advisor
Your trusted companion in NI LabVIEW
Powered by Azure OpenAI, Nigel brings a wealth of knowledge about the NI platform and will be available to help you be even more productive in LabVIEW.
You can:
- Ask Nigel about LabVIEW concepts so you can learn more about it
- Ask Nigel to review code so you can better understand its functionality, especially helpful when reviewing code from a teammate
- Ask Nigel for help to find functions so you can quickly find what you need
- Ask Nigel to help you find example code so you can add new functionality to your application with a reference
If you’re new to LabVIEW, Nigel will help you get started: learn about LabVIEW and how to program. If you’re an experienced user, Nigel will still help you with code reviews and development advice.
Image of VI Description with Nigel AI Advisor in LabVIEW.
Nigel will be available in LabVIEW Professional and the LabVIEW+ Suite
LabVIEW Professional
Recommended for professional applications that require better development, reporting, and analysis tools.
DownloadThe LabVIEW+ Suite
The LabVIEW+ Suite is a collection of LabVIEW, plus, DIAdem, TestStand, FlexLogger, and more NI Software. The Suite saves engineers time by providing purpose-built tools for measurement, analysis, and test.
DownloadPart numbers listed are for subscription-based downloadable media for Windows. You can find more information, here.

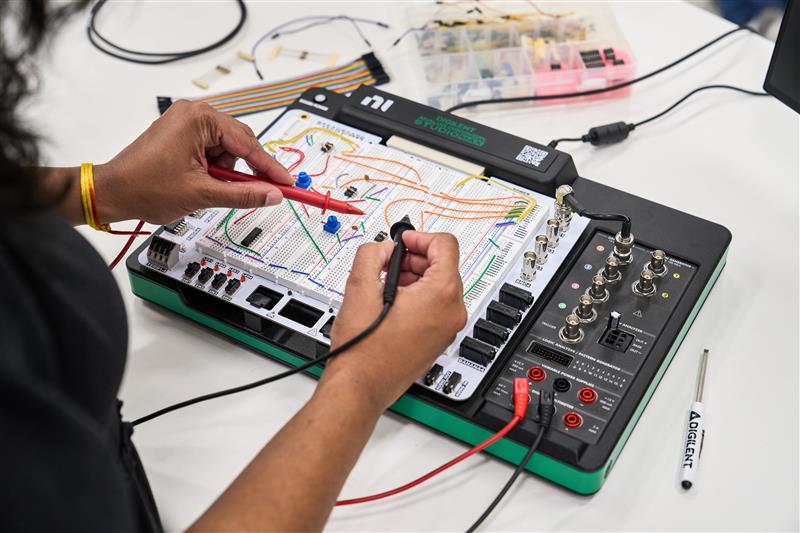

Analog Discovery Studio Max – A Multi-Instrument Lab for Engineering Experimentation
The new Analog Discovery Studio Max (ADS Max) is a comprehensive electronics laboratory solution designed for academic instruction and hands-on learning. Equipped with 14 built-in instruments, supporting everything from a multimeter and bode plots to digital protocol generation and analysis, the ADS Max is ideal for circuit design, signal analysis, and embedded systems coursework. With a variety of removable and curriculum tailored Canvas boards to enhance its functionality, the ADS Max enables dynamic, hands-on experiences in both classroom and remote learning environments.
410-435
Analog Discovery Studio Max Product Kit
Buy now
All-in-One Design:
Combines 14 essential test instruments, including an oscilloscope, waveform generator, and logic analyzer. Ideal for both in-classroom and remote learning environments.
ADSMax Ecosystem:
Extends the platform with subject-specific materials and hardware from academic partners.
Breadboardable Interface:
Allows for easy and quick circuit design and testing.
Software Support:
Compatible with Digilent WaveForms, LabVIEW, C, and Python for custom software development.
