MICROCHIP  RN1723-I/RM100  WLAN MODUL, 802,11B/G, 2,4GHZ, SPI/UART

MICROCHIP RN1723-I/RM100
MICROCHIP RN1723-I/RM100
Technical Data Sheet (436.53KB) EN Se alla tekniska dokument

Bilden är enbart avsedd som illustration. Se produktbeskrivningen.

MICROCHIP RN1723-I/RM100
MICROCHIP RN1723-I/RM100

Produktöversikt

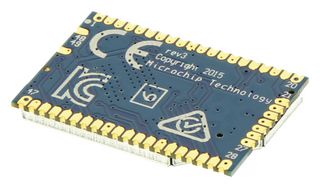

The RN1723-I/RM100 is a 2.4GHz IEEE standard 802.11b/g Wireless LAN Module that is footprint compatible with the RN171 Wi-Fi module. The RN1723 is a full-featured 802.11 b/g surface mount module with an impressive 4µA sleep mode and a new power-saving DOZE mode. The RN1723 is extremely power efficient, making it ideal for a vast range of applications that require many years of battery life. It offers advanced SSL/TLS security that runs on an external PIC32 MCU enabling highly secure client/server communication. It is configured via simple ASCII commands for ease of development and quick time to market. It can independently maintain a low-power wireless network connection. Ultra-low power usage and flexible power management maximize the module lifetime in battery-operated devices. A wide operating temperature range allows use in indoor and outdoor environments. When operating in Sleep mode, the module minimizes battery usage while still being able to respond to certain events.
  • Eight analog sensor inputs
  • Integrated crystal, internal voltage regulator, matching circuitry, power amplifier
  • Configured using simple ASCII commands
  • Ultralow power for years of battery life
  • Hardware interfaces - UART and SPI slave
  • Supports SoftAP and Infrastructure networking modes
  • RF pad for external antenna
  • User programmable GPIO and ADCs
  • Real-time clock for time-stamping, auto-sleep and auto-wakeup modes
  • Run directly from batteries or regulated power supplies
  • ASCII interface for ease of development
  • Over the air firmware upgrade
  • WPS mode for secure wireless setup
  • Secure Wi-Fi authentication schemes (WEP/WPA/WPA2)
  • Advanced SSL/TLS security running on external PIC® MCU
  • Full on-board TCP/IP/UDP stack
  • -40 to 85°C Operating temperature range

Produktinformation

Frekvens RF:
2.462GHz
Modulgränssnitt:
SPI, UART
Modulanvändningsområden:
Hemautomation, Fjärrsensorer, Säkerhet, Telemetri, Trådlös Uppkoppling
Produktsortiment:
-
SVHC-ämne:
No SVHC (17-Dec-2015)
Hitta liknande produkter  grupperade efter gemensamma attribut

Tillämpningar

  • Automation & Processkontroll;
  • Sensing & Instrumentation;
  • Säkerhet;
  • Telekommunikation & Networking;
  • Trådlös Kommunikation

Lagstiftning och miljö

Ursprungsland:
United States

Det land där den sista betydelsefulla tillverkningsprocessen utfördes

RoHS-kompatibelt:
Ja
  RoHS - Uppfyllandecertifikat
Tariffnr:
85176200
Vikt (kg):
.0059
