B&K PRECISION  BK8601  DC Elektronisk Last, 8600 Serien, 250 W, Programmerbar, 0 V, 120 V, 60 A

Technical Data Sheet (281.76KB) EN Se alla tekniska dokument

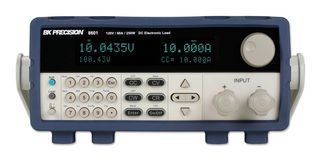

Bilden är enbart avsedd som illustration. Se produktbeskrivningen.

B&K PRECISION BK8601
Video

Produktöversikt

The 8600 series programmable DC Electronic Load provides the performance of modular system DC electronic loads in a compact bench top form factor. With fast transient operation speeds and high 16-bit measurement resolution, these standalone DC loads can be used for testing and evaluating a variety of DC sources such as DC power supplies, DC-DC converters, batteries, battery chargers and photovoltaic arrays. The DC loads can operate in constant current, constant voltage, constant resistance or constant power mode and be configured to provide a dynamically changing load to the DC source with fast load switching times. Versatile internal, external and remote triggering options allow the dynamic load behaviour to be synchronized with other events. Increase productivity by saving test parameters into any one of the 100 memory areas for quick system recall. All load parameters such as voltage, current, slew rate and width can be set via the front panel or programmed remotely.
  • CC/CV/CR/CW operating modes
  • List mode function
  • Store and recall up to 100 setups
  • Adjustable slew rate in CC mode
  • Flexible triggering options via front panel, external input, timer or bus
  • Built-in battery test function with voltage level, capacity level and timer stop conditions
  • Test modes to validate the OCP/OPP protection functions of a power supply
  • CR-LED mode to simulate the loading behaviour of typical LEDs
  • Remote sense
  • Analogue current control and monitoring
  • Thermostatically controlled fan
  • Standard USB, RS232 and GPIB interfaces supporting SCPI commands for remote control
  • OVP/OCP/OPP/OTP including local and remote reverse voltage (LRV/RRV) protection
  • Compact 19" half-rack form factor allows for side-by-side rack mounting of two units

Produktinformation

Produktsortiment:
8600 Serien
Märkeffekt:
250W
DC-belastning, Typ:
Programmerbar
Driftspänning Min:
0V
Driftspänning, Max:
120V
Max driftström:
60A
Garanti:
3 år
SVHC-ämne:
No SVHC (15-Jun-2015)

Hitta liknande produkter  grupperade efter gemensamma attribut

Tillämpningar

  • Testning & Mätning;
  • Industri

Lagstiftning och miljö

Ursprungsland:
China

Det land där den sista betydelsefulla tillverkningsprocessen utfördes

RoHS-kompatibelt:
Ja
Tariffnr:
90303391
Vikt (kg):
5
