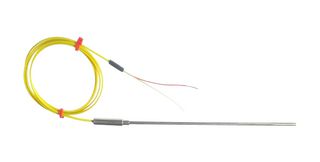

MA-ISK-S60-500-P1-1.0-C7-T-ANSI

MA-ISK-S60-500-P1-1.0-C7-T-ANSI is an ANSI mineral insulated thermocouple with 1metre PFA PTFE insulated flat pair cable and tails. Flexible mineral insulated probe with stainless steel sheath, plain pot seal & 1metre extension cable. 310 stainless steel sheath provides good corrosion and oxidation resistance to suit a wide range of processes, satisfactorily operates in sulphur bearing atmospheres. Typical applications include brick & cement kilns, glass industry, heat treatment & annealing furnaces, power stations, flues, heat exchangers etc. Termination is 1metre 7/0.2mm PFA PTFE insulated flat pair cable, colour coded in accordance with ANSI MC96.1.

• Mineral insulated thermocouple to ANSI MC96.1
• Type K with 310 stainless steel sheath
• Highly flexible, sheath can be bent/formed to suit many applications and processes
• Insulated hot junction, plain pot seal (200°C)
• Single element, junction insulated from sheath (protection against spurious electrical signals)
• Probe temperature range form -40°C to +1100°C
• 6mm probe diameter, 500mm probe length
• Yellow cable jacket, yellow/red positive/negative tails
