DMM1604
Bench Digital Multimeter, 1604 Series, 40000 Count, True RMS, Auto, Manual Range, 1 kV, 10 A
- Manufacturer:
- AIM-TTI INSTRUMENTS AIM-TTI INSTRUMENTS
- Manufacturer Part No:
- DMM1604
- Order Code:
- 605499
- Product Range
- 1604
- Technical Datasheet:
- DMM1604 Datasheet
Product Range Selector (1604)
See all from this product rangeProduct Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- 4.75
- :
- RS232
- :
- 10A
- :
- 750V
- :
- 40Mohm
- :
- 1604
- :
- 10A
- :
- 1kV
- :
- 3 Years
- :
- Current, Voltage, Frequency, Resistance
- :
- -
Technical Documents (1)
Product Overview

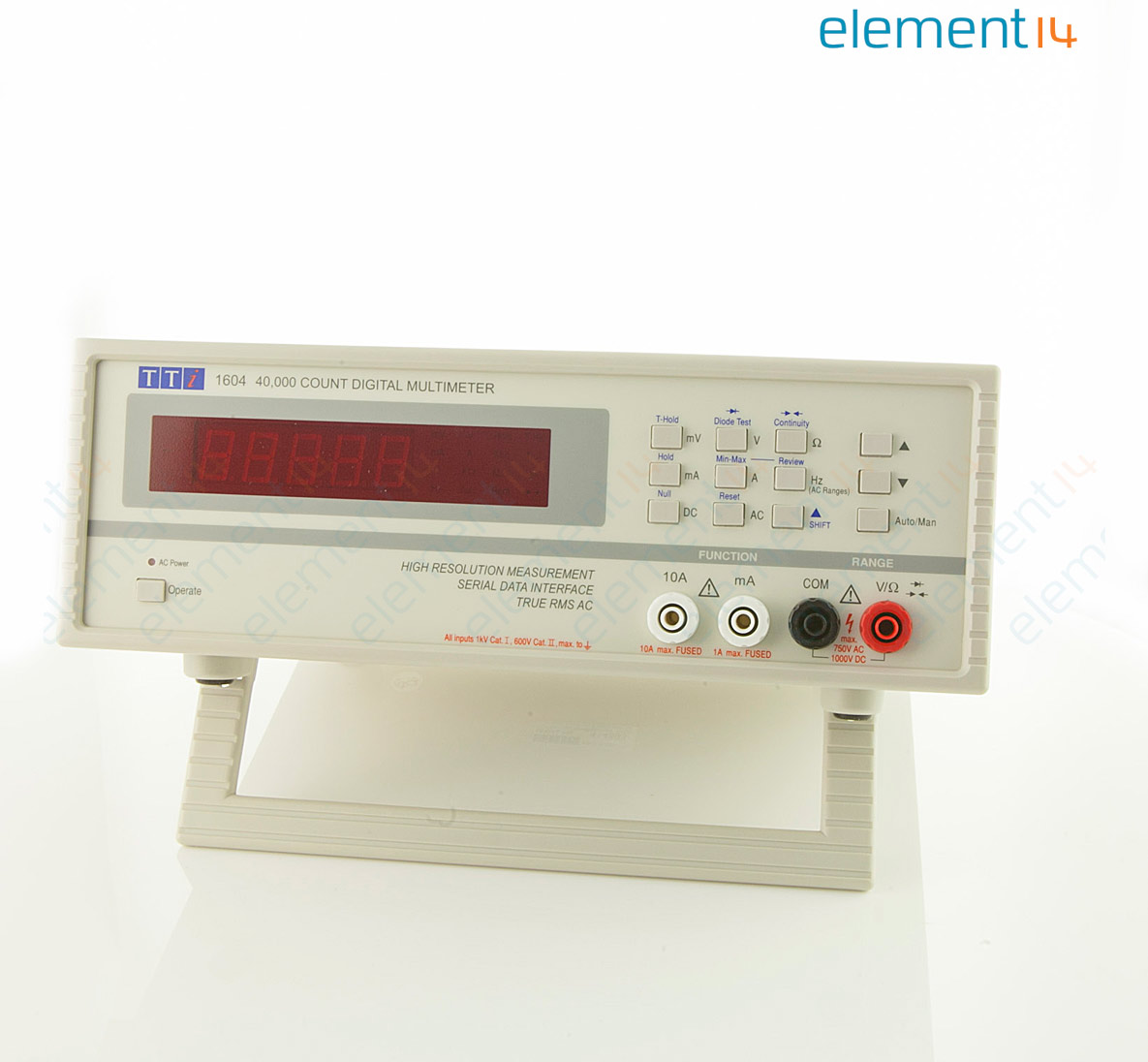

The 1604 is a low-cost auto/manual ranging bench-top DMM with a large and bright LED display. It offers 4¾ digit (40,000 count) scale length, true RMS ac measurements, a basic accuracy of 0.08% and a resolution of 10µV, 10mOhms and 0.1µA. The 1604 incorporates several "smart" functions such as Relative measurement and Minimum-Maximum storage. The T-Hold function enables readings to be held on the display automatically each time a new test point is probed.
- 40,000 count, auto/manual ranging
- Basic d.c. V accuracy 0.08%
- Resolution 10µV, 10mohm, 0.1µA
- Large bright LED display (14mm/0.56")
- Current measurement up to 10 amps
- True RMS as functions, wide ac bandwidth
- Frequency measurement function
- Relative, T-Hold and Min-Max functions
- Isolated RS232 interface as standard
- Safety EN6101-1, EMC 50081-1, EN50082-1
Applications
Industrial, Maintenance & Repair, Test & Measurement
