AMPHENOL INDUSTRIAL  PT05SP20-16S  Cirkulärt kontaktdon, PT-SP Series, MIL-DTL-26482 Series I Equivalent, Rak pluggkontakt

AMPHENOL INDUSTRIAL PT05SP20-16S
AMPHENOL INDUSTRIAL PT05SP20-16S
Technical Data Sheet (10.53MB) EN Se alla tekniska dokument

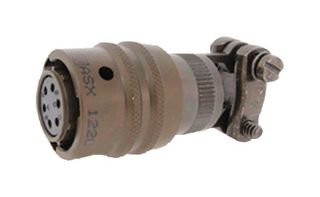

Bilden är enbart avsedd som illustration. Se produktbeskrivningen.

AMPHENOL INDUSTRIAL PT05SP20-16S
AMPHENOL INDUSTRIAL PT05SP20-16S

Produktöversikt

The PT05SP20-16S from Amphenol is PT-SP series, MIL-DTL-26482 series I equivalent straight plug with 16 contacts. The PT-SP series miniature cylindrical connectors offer high density contact arrangements in a circular shell with salt spray exposure of 48hour, 500hour. The dependable 5 key/keyway polarization with 3 point bayonet lock coupling assures positive mating with no chance of cross plugging. Spring tension provided by a wave washer in the coupling nut ensures maintenance of interfacial seal between mating halves. Both the insert and main joint gasket are moulded from resilient neoprene insulator. It is designed for harsh environments and have well-proven electrical capability to withstand extreme shock, exposure and vibration. The high reliability performance makes PT-SP series ideal for environmental sealing or pressurized applications.
  • Quick disconnect bayonet coupling for rapid mating and unmating
  • Intermateable, intermountable and interchangeable with all MIL-DTL-26482 connectors
  • 500 mating cycles
  • Operating temperature range from -55°C to +125°C
  • Potted crimp contacts
  • Insulation resistance is 5000Mohm at 25°C
  • Aluminium alloy body material with olive drab chromate over cadmium plating
  • Copper alloy crimp socket contacts with gold plating

Produktinformation

Bakstycke utförande, cirkulärt kontaktdon:
Rak pluggkontakt
Antal kontakter:
16Kontakt(-er)
Typ av cirkulärt kontaktdon:
Crimp uttag
Kopplingsutförande:
Bajonett
Instickskontakt uppläggning:
20-16
Kroppsmaterial, kontaktdon:
Kropp i aluminiumlegering
Plätering, kontaktdonskropp:
Olivgrå kromat över kadmium
Kontaktmaterial:
Kopparlegering
Kontaktplätering:
Guld
Insatsrotation:
N
Serviceklass:
Tätad mot omgivningen, Potting Cup
Produktsortiment:
PT-SP Series, MIL-DTL-26482 Series I Equivalent
Kön:
Hane
Kön (Kontakt):
Uttag
Kontaktdonmontering:
Kabelmonterad
Typ av kontaktavslutning:
Crimp / Löd
Kontakttyp:
Cirkulär industriell
Storlek - Kontakthölje:
20
SVHC-ämne:
To Be Advised

Hitta liknande produkter  grupperade efter gemensamma attribut

Tillämpningar

  • Handel;
  • Industri

Lagstiftning och miljö

Ursprungsland:
United States

Det land där den sista betydelsefulla tillverkningsprocessen utfördes

RoHS-kompatibelt:
Nej
Tariffnr:
85369010
Vikt (kg):
.001
